Cub Cadet LT 1022 Engine
|
|
| Engine Detail | |
| Briggs & Stratton 40H777 | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Displacement | 655 cc 40.0 ci |
| Bore/Stroke | 2.97x2.89 inches 75 x 73 mm |
| Power (gross) | 22 hp 16.4 kW |
| Compression | 8.5:1 |
| Rated RPM | 3600 |
| Idle RPM | 1200-3600 |
| Torque | 31.6 lb-ft 42.8 Nm |
| Torque RPM | 2400 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 2 qts 1.9 L |
| Oil change | 100 h |
| Sparkplug gap | 0.030 inches 0.762 mm |

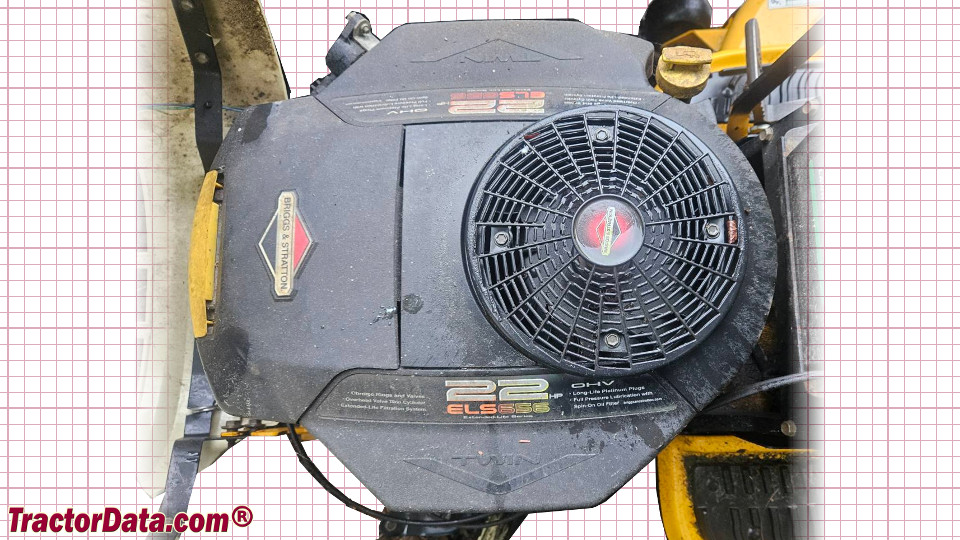

| Cub Cadet LT 1022 Engine | |
 | |
| Image courtesy of Laura Seeley |
