Cub Cadet GT 2521 Engine

Cub Cadet GT 2521 lawn tractor photo
2500 Series
Garden tractor
Series:GT 2521GT 2523
Engine Detail
Briggs & Stratton Vanguard
Displacement:626 cc
38.2 ci
Bore/Stroke:2.97x2.76 inches
75 x 70 mm
Power (gross):21 hp
15.7 kW
Rated RPM:3600
Idle RPM:1200-3600
Starter volts:12
Sparkplug gap:0.030 inches
0.762 mm
Engine Oil

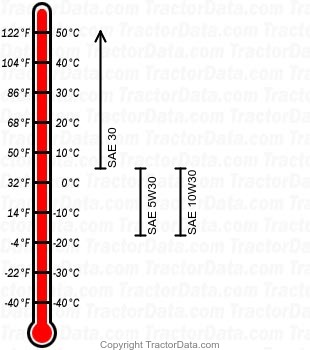

GT 2521 gasoline engine oil chart
Oil capacity:1.5 qts
1.4 L
Oil change:50 h
