Cub Cadet 1050 Engine

Cub Cadet 1050 lawn tractor photo
Garden tractor
Engine Detail
Kohler M10
air-cooled horizontal-shaft
Displacement390 cc
23.85 ci
Bore/Stroke3.25x2.88 inches
83 x 73 mm
Power (gross)10 hp
7.5 kW
Idle RPM1800-3600
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches (cold)
0.229 mm
Exhaust valve clearance0.018 inches (cold)
0.457 mm
Engine Oil

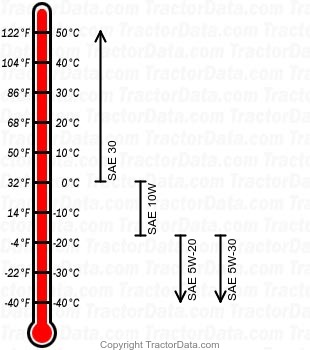

1050 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h

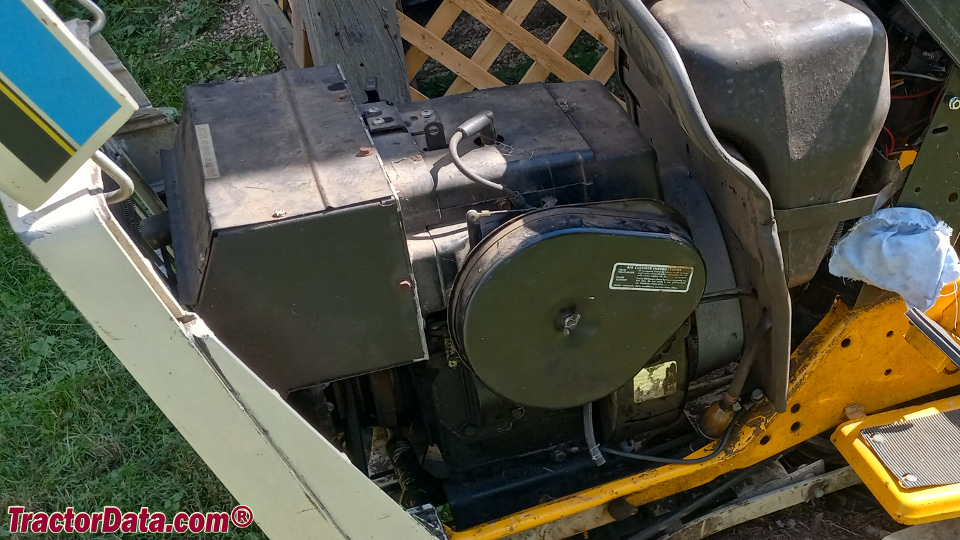

Cub Cadet 1050 Engine
Cub Cadet 1050 engine image
Image courtesy of Mike Paul
