Cub Cadet 2284 Engine


Cub Cadet 2284 lawn tractor photo
1995 - 1997
Garden tractor
Series map:
2086
2284
20.0hp
22.0hp
Engine Detail
Kohler Command CH22
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)22 hp
16.4 kW
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L

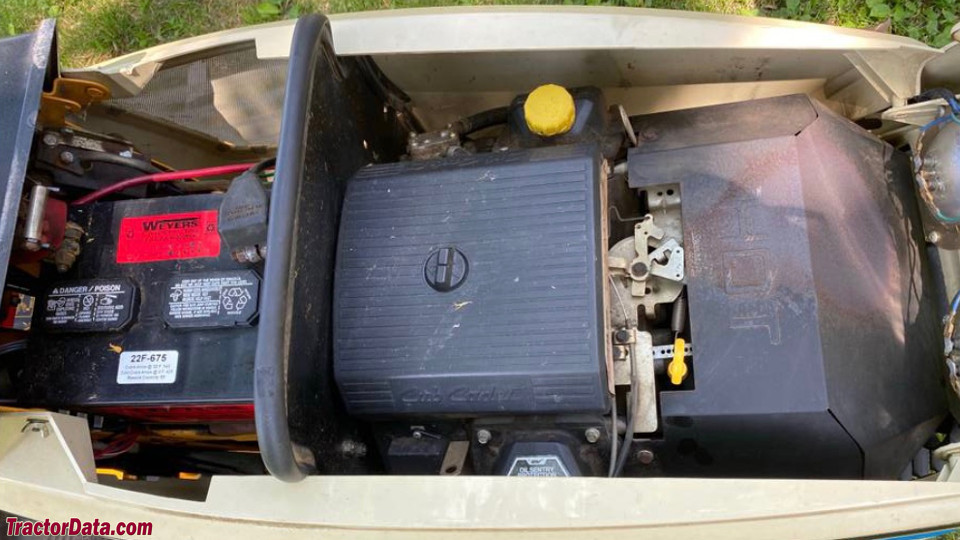

Cub Cadet 2284 Engine
Cub Cadet 2284 engine image
Image courtesy of Dan La Pointe
