Cub Cadet 1862 Engine

Cub Cadet 1862 lawn tractor photo
1990 - 1992
Garden tractor
Series map:
Engine Detail
Kohler Magnum M18
air-cooled horizontal-shaft opposed-twin
Displacement691 cc
42.18 ci
Bore/Stroke3.125x2.75 inches
79 x 70 mm
Power (gross)18 hp
13.4 kW
Idle RPM1200-3600
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.004 inches*Cold
0.102 mm
Exhaust valve clearance0.012 inches*Cold
0.305 mm
Engine Oil

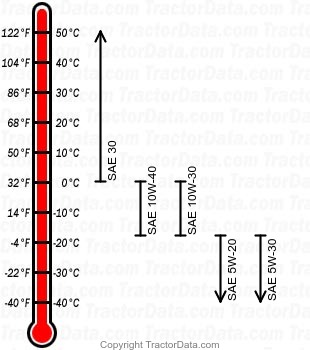

1862 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
Cub Cadet 1862 Engine
Cub Cadet 1862 engine image
