Lawn Tractors > Cub Cadet > 1872

Cub Cadet 1872 Engine



Cub Cadet 1872 lawn tractor photo
1987 - 1989
Garden tractor
Series map:
1772
1872
2072
17.0hp
18.0hp
20.0hp
Engine Detail
Kohler Magnum
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
Displacement691 cc
42.18 ci
Bore/Stroke3.125x2.75 inches
79 x 70 mm
Power (gross)18 hp
13.4 kW
Idle RPM1200-3600
Starterelectric
Starter volts12
SparkplugChamption RBL-15Y
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.004 inches (cold)
0.102 mm
Exhaust valve clearance0.012 inches (cold)
0.305 mm
Engine Oil

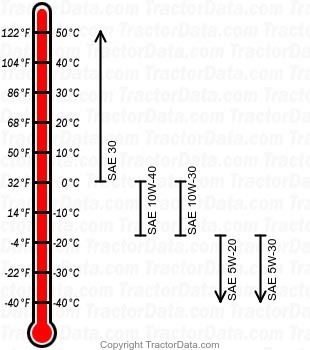

1872 gasoline engine oil chart
Oil capacity1.875 qts
1.8 L
Oil change50 h

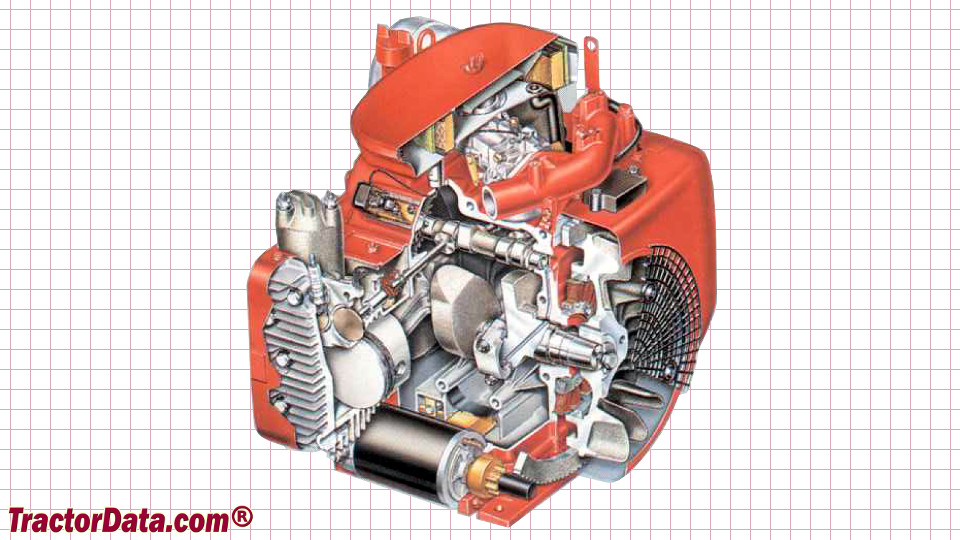

Cub Cadet 1872 Engine
Cub Cadet 1872 engine image
