Lawn Tractors > Cub Cadet > 1810

Cub Cadet 1810 Engine



Cub Cadet 1810 tractor photo
1986 - 1989
Garden tractor
Series map:
1806
1810
1811
18.0hp
18.0hp
18.0hp
Engine Detail
Kohler M18
gasoline
2-cylinder
air-cooled
Displacement691 cc
42.18 ci
Bore/Stroke3.125x2.75 inches
79 x 70 mm
Power (gross)18 hp
13.4 kW
Idle RPM1200-3600
Starterelectric
Starter volts12
Sparkplug gap0.25 inches
6.350 mm
Intake valve clearance0.004 inches (cold)
0.102 mm
Exhaust valve clearance0.012 inches (cold)
0.305 mm
Engine Oil

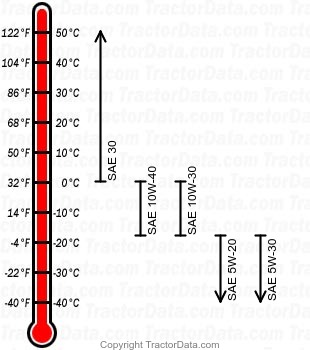

1810 gasoline engine oil chart
Oil capacity2 qts
1.9 L
