| | 2000 - 2001 |
| 3000 Series | | Garden tractor |
|
Series map:
3184
3204
18.0hp
20.0hp
| Engine Detail |
| Kohler CH18S |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft V-twin |
| Displacement | 573 cc
35 ci
|
| Bore/Stroke | 2.95x2.65 inches
75 x 67 mm
|
| Power (gross) | 18 hp
13.4 kW
|
| Air cleaner | dry with foam pre-cleaner
|
| Compression | 8.5:1
|
| Rated RPM | 3350
|
| Idle RPM | 1400-3600
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|

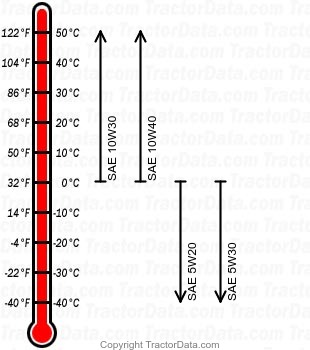

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
