Cub Cadet 3206 Engine
|
|
| Engine options | |
| 20HP Kohler 624cc 2-cyl gasoline | |
| 20HP Kohler 673cc 2-cyl gasoline |
| Engine Detail | |

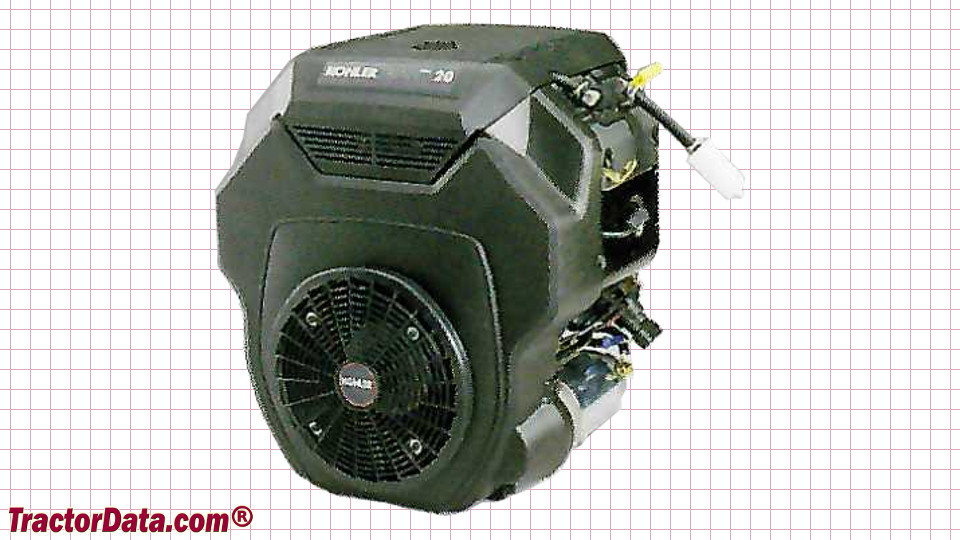

| Kohler CH20S | |
| gasoline | |
| 2-cylinder | |
| air-cooled horizontal-shaft V-twin | |
| Original engine, used through the 2000 model year. | |
| Displacement | 624 cc 38.1 ci |
| Bore/Stroke | 3.03x2.64 inches 77 x 67 mm |
| Power (gross) | 20 hp 14.9 kW |
| Compression | 8.5:1 |
| Rated RPM | 3350 |
| Idle RPM | 1400-3600 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 2 qts 1.9 L |
| Cub Cadet 3206 Engine | |
 |
| Engine Detail | |
| Kohler CH22S | |
| gasoline | |
| 2-cylinder | |
| air-cooled horizontal-shaft V-twin | |
| The CH22 was used in the 2001 production year of the 3206. | |
| Displacement | 673 cc 41.1 ci |
| Bore/Stroke | 3.15x2.64 inches 80 x 67 mm |
| Power (gross) | 20 hp 14.9 kW |
| Compression | 8.5:1 |
| Rated RPM | 3450 |
| Idle RPM | 1450-3600 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 2 qts 1.9 L |
