Craftsman 917.28861 Engine

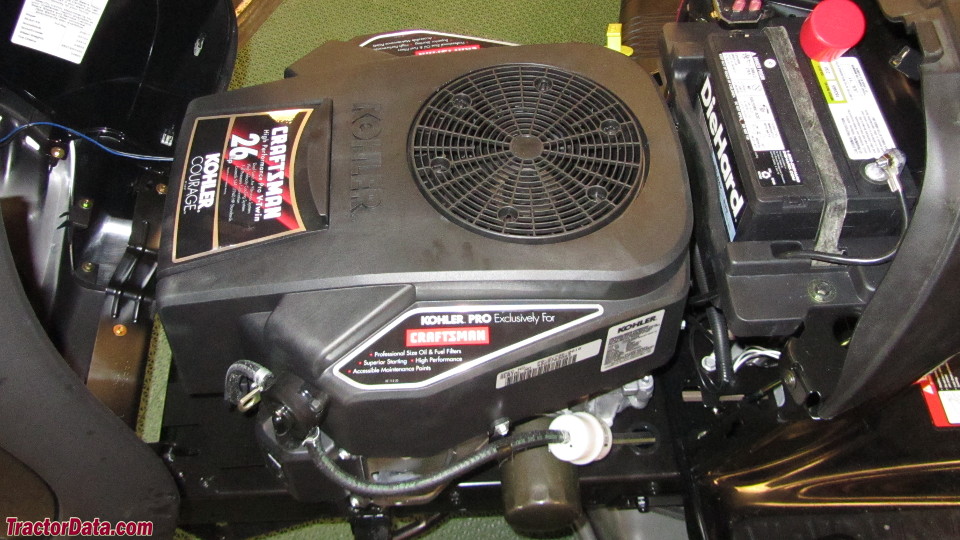

Craftsman 917.28861 lawn tractor photo
2011 - 2013
GT6000 Series
Garden tractor
Husqvarna built
Series map:
917.28861
26.0hp
Engine Detail
Kohler Pro Courage SV735
gasoline
2-cylinder
air-cooled
Displacement725 cc
44.24 ci
Power (gross)26 hp
19.4 kW
Air cleanerpaper
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

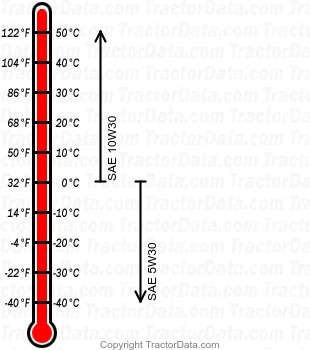

917.28861 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Craftsman 917.28861 Engine

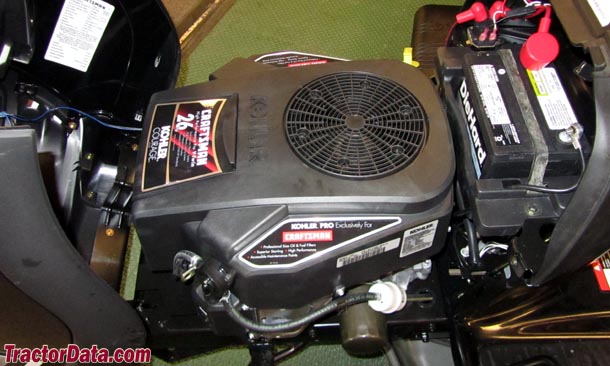

Craftsman 917.28861 engine image
