Craftsman 917.27662 Engine


Craftsman 917.27662 lawn tractor photo
2006
YS 4500 Series
Lawn tractor
AYP built
Engine Detail
Kohler SV610
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement596 cc
36.4 ci
Bore/Stroke3.70x3.39 inches
94 x 86 mm
Power (gross)21 hp
15.7 kW
Air cleanerpaper cartridge
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

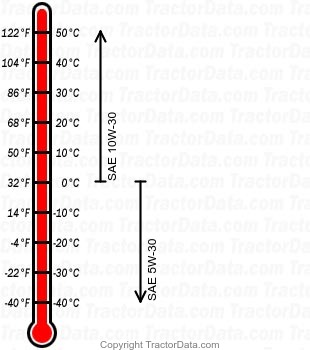

917.27662 gasoline engine oil chart
Oil capacity1.44 qts
1.4 L
