Craftsman 917.27363 Engine

Craftsman 917.27363 lawn tractor photo
DYT 4000 Series
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 31P777
air-cooled vertical-shaft
Displacement501 cc
30.6 ci
Bore/Stroke3.56x3.062 inches
90 x 78 mm
Power (gross)18.5 hp
13.8 kW
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

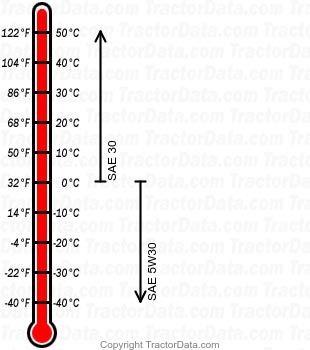

917.27363 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
