Craftsman 917.27335 Engine

Craftsman 917.27335 lawn tractor photo
LT 1000 Series
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 31C707
air-cooled vertical-shaft
Displacement501 cc
30.6 ci
Bore/Stroke3.56x3.062 inches
90 x 78 mm
Power (gross)16 hp
11.9 kW
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

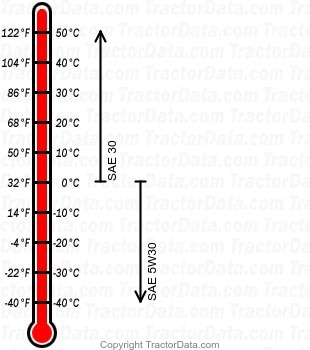

917.27335 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
