Kubota T2080 Transmission


Kubota T2080 lawn tractor photo
2008 - ????
Lawn tractor
Series:T1880T2080T2380
Transmission
TransmissionHydro-Gear G7
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity2.9 qts
2.7 L
Hydrostatic transmission controlled by treadle foot pedal. Cruise control standard.
Speeds
T2080 G7 belt-driven hydrostatic speeds

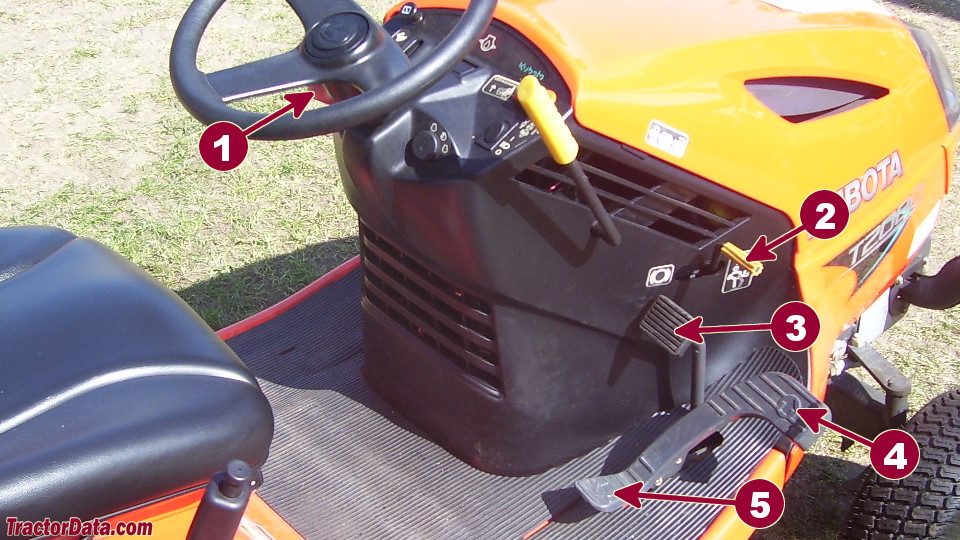

T2080 Transmission Controls
Kubota T2080 transmission controls
1Throttle
2Parking brake
3Brake
4Forward
5Reverse
