Gravely 8122-G Transmission


Gravely 8122-G lawn tractor photo
1986
8000-G Series
Garden tractor
Series map:
8122-G
8123-G
12.0hp
12.0hp
Transmission
Typeshaft-driven gear
Gears8 forward and 4 reverse
Oil capacity6 qts
5.7 L
Oil type
10W-40 SC
Four gears (1-4) in two ranges (low-high) with forward/reverse clutches. The directional clutch must be in neutral to shift gears or ranges.

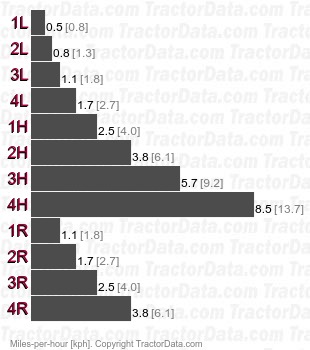

Speeds
8122-G  shaft-driven gear speeds
