Gravely 8167 Transmission


No photo available
1979
8000 Series
Garden tractor
Series map:
8166
8167
8177
16.0hp
16.0hp
16.5hp
Transmission
Typegear
Gears8 forward and 4 reverse
Oil capacity6 qts
5.7 L
Oil type
10W-40 SC
Four gears (1-4) in two ranges (low-high) with forward/reverse clutches. The directional clutch must be in neutral to shift gears or ranges.

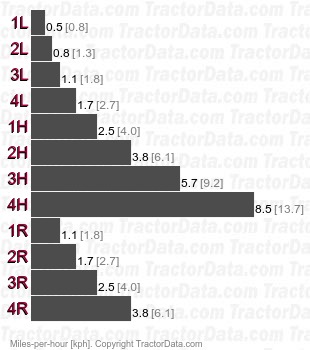

Speeds
8167  gear speeds
