Gravely 424 Engine

Gravely 424 lawn tractor photo
1967 - 1972
400 Series
Garden tractor
Series map:
Engines overview
10HP Kohler 391cc 1-cyl gasoline
10HP Onan 491cc 1-cyl
Engine Detail
Kohler K241
air-cooled horizontal-shaft
Displacement391 cc
23.9 ci
Bore/Stroke2.87x3.25 inches
73 x 83 mm
Power (gross)10 hp
7.5 kW
Air cleanersingle dry element
Rated RPM3600
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches (cold)
0.229 mm
Exhaust valve clearance0.018 inches (cold)
0.457 mm
Engine Oil

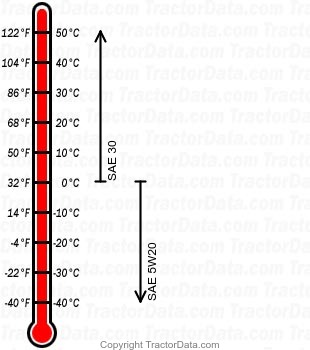

424 gasoline engine oil chart
Oil capacity2.5 qts
2.4 L
Engine Detail
Onan NB
Displacement491 cc
30 ci
Bore/Stroke3.5625x3.00 inches
90 x 76 mm
Power10 hp
7.5 kW
Rated RPM3600
Starter volts12
