Lawn Tractors > Gravely > GMT 9000

Gravely GMT 9000 Engine



Gravely GMT 9000 lawn tractor photo
1977 - 1982
Garden tractor
Series map:
GMT 9000
26.0hp
Engine Detail
Continental R800-46
gasoline
4-cylinder
liquid-cooled
Displacement845 cc
51.6 ci
Bore/Stroke2.28x3.14 inches
58 x 80 mm
Power26 hp
19.4 kW
Compression8:1
Rated RPM4000
Firing order1-3-4-2
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Point gap0.018 inches
0.457 mm
Intake valve clearance0.005 inches (cold)
0.127 mm
Exhaust valve clearance0.008 inches (cold)
0.203 mm
Engine Oil

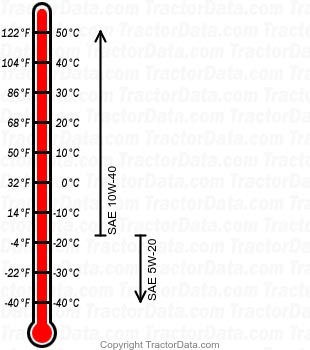

GMT 9000 gasoline engine oil chart
Oil capacity3.25 qts
3.1 L
