John Deere 111H Engine


John Deere 111H lawn tractor photo
1982 - 1984
100 Lawn Series
Lawn tractor
Series:111111H112L
112L
Engine Detail
Briggs & Stratton 252707
gasoline
1-cylinder
air-cooled
Displacement:399 cc
24.4 ci
Bore/Stroke:3.4375x2.625 inches
87 x 67 mm
Power:11 hp
8.2 kW
Starter:electric
Starter volts:12
Sparkplug:AC CS-45
 Champion RJ17LM*CJ-8 in the operator manual, users report that the RJ17M is the correct plug
 Autolite A79
Sparkplug gap:0.030 inches
0.762 mm
Engine Oil

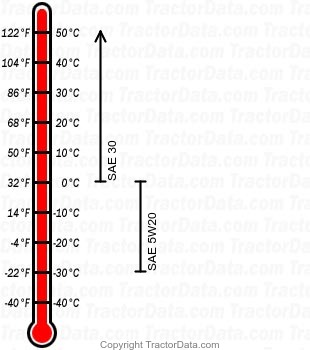

111H gasoline engine oil chart
Oil capacity:1.5 qts
1.4 L
