John Deere 111 Transmission


John Deere 111 lawn tractor photo
1979 - 1985
100 Lawn Series
Lawn tractor
Series:108111111H
Transmission
TransmissionPeerless 801
Typebelt-driven gear
Gears5 forward and 1 reverse
Oil capacity1.125 qts
1.1 L
Peerless gear transmission operated with right-hand gear selector and left-foot clutch pedal. Clutch must be used to change gears but tractor does not need to be stopped to change forward gears. Tractor should be stopped before changing forward/reverse direction.

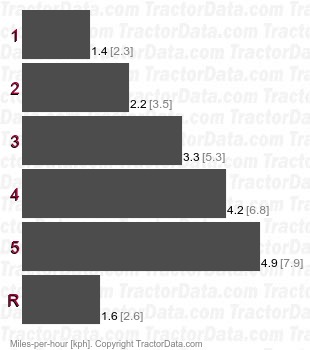

Speeds
111 801 belt-driven gear speeds
