Ingersoll 6020 Engine


Ingersoll 6020 tractor photo
1997 - 2004
Series map:
6018
6020
18.0hp
20.0hp
Engine options
20HP Honda 614cc 2-cyl gasoline
20HP Kohler 640cc 2-cyl gasoline
Engine Detail
Honda GX620
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement614 cc
37.5 ci
Bore/Stroke3.03x2.60 inches
77 x 66 mm
Power (gross)20 hp
14.9 kW
Rated RPM3600
Torque32.5 lb-ft
44.1 Nm
Torque RPM2500
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

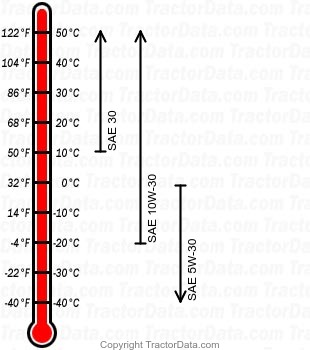

6020 gasoline engine oil chart
Oil capacity1.3 qts
1.2 L
Oil change100 h
Engine Detail
Kohler CH20
gasoline
2-cylinder
air-cooled
Displacement640 cc
39.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)20 hp
14.9 kW
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L
