| | 2002 |
| Lawn tractor | | John Deere built |
|
Series map:
L2048
L2548
20.0hp
25.0hp
| Engine Detail |
| Briggs & Stratton |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft V-Twin |
| Displacement | 724 cc
44.2 ci
|
| Power | 25 hp
18.6 kW
|
| Air cleaner | foam
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug gap | 0.040 inches
1.016 mm
|

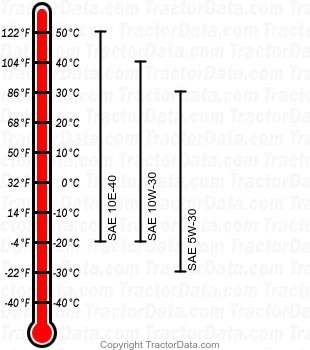

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Scotts L2548 Engine |
 |
| Image courtesy of Jeff Gray |
