Scotts S2048 Engine

Scotts S2048 lawn tractor photo
1999 - 2001
Lawn tractor
John Deere built
Engine Detail
Kohler CV20S
air-cooled vertical-shaft V-Twin
Displacement:624 cc
38.1 ci
Bore/Stroke:3.03x2.64 inches
77 x 67 mm
Power:20 hp
14.9 kW
Air cleaner:paper with foam precleaner
Starter volts:12
Sparkplug gap:0.030 inches
0.762 mm
Engine Oil

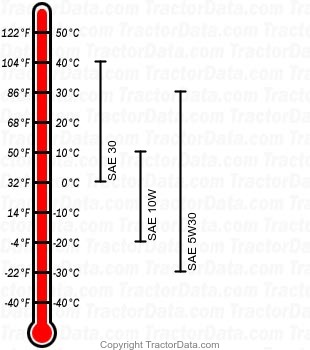

S2048 gasoline engine oil chart
Oil capacity:2 qts
1.9 L
Scotts S2048  engine photo
