Lawn Tractors > Honda > HA4118

Honda HA4118 Engine



Honda HA4118 lawn tractor photo
1998 - 2001
Lawn tractor
John Deere built
Series map:
HA4118
HA4120
18.0hp
20.0hp
Engine Detail
Honda GXV610
gasoline
2-cylinder
air-cooled V-Twin
Displacement614 cc
37.5 ci
Bore/Stroke3.03x2.60 inches
77 x 66 mm
Power18 hp
13.4 kW
Rated RPM3600
Starter typeelectric
SparkplugNGK BPR5ES
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

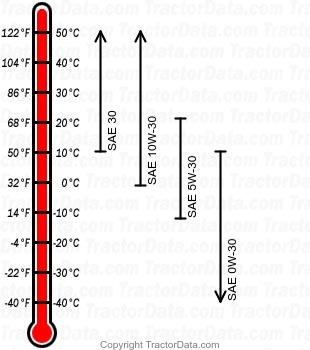

HA4118 gasoline engine oil chart
Oil capacity2.2 qts
2.1 L
