Honda H2113 Engine


Honda H2113 lawn tractor photo
1988 - ????
Lawn tractor
Engine Detail
Honda GXV390
gasoline
1-cylinder
air-cooled
Displacement388 cc
23.7 ci
Bore/Stroke3.46x2.51 inches
88 x 64 mm
Power13 hp
9.7 kW
Rated RPM3600
Torque20.3 lb-ft
27.5 Nm
Torque RPM2500
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.004 inches (cold)
0.102 mm
Exhaust valve clearance0.006 inches (cold)
0.152 mm
Engine Oil

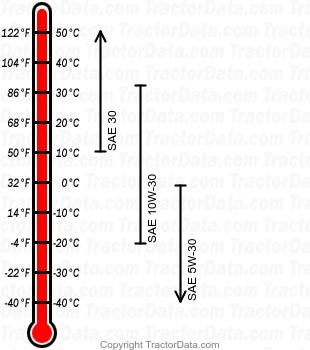

H2113 gasoline engine oil chart
Oil capacity1.16 qts
1.1 L
