Honda H6522 Engine


Honda H6522 lawn tractor photo
1991 - 1996
Garden tractor
Engine Detail
Honda GD1250
diesel
3-cylinder
liquid-cooled horizontal-shaft
Displacement1235 cc
75.4 ci
Bore/Stroke3.20x3.10 inches
81 x 79 mm
Fuel systemdirect injection
Air cleanerdual stage dry
Rated RPM2600
Operating RPM900-2800
Starterelectric
Starter volts12
Coolant capacity4.6 qts
4.4 L
Engine Oil

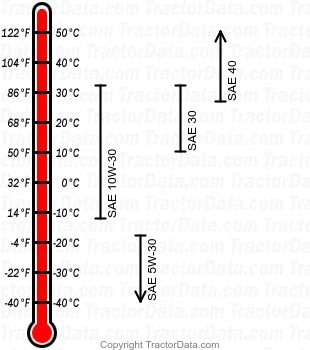

H6522 diesel engine oil chart
Oil capacity3.7 qts
3.5 L

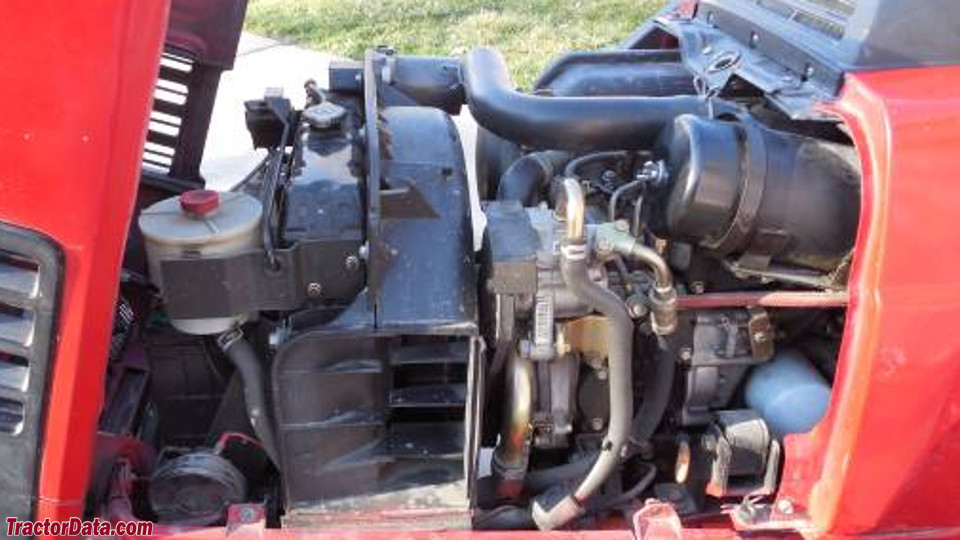

Honda H6522 Engine
Honda H6522 engine image
