John Deere LA145 Engine


John Deere LA145 lawn tractor photo
2008 - 2010
LA105 Series
Lawn tractor
LA130
Series:LA135LA145LA155
D140
Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)22 hp
16.4 kW
Air cleanerpaper and foam elements
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

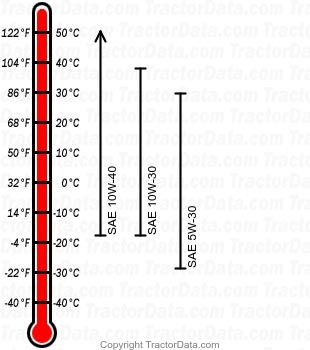

LA145 gasoline engine oil chart
Oil capacity2 qts
1.9 L
