Lawn Tractors > Ford > LGT-12

Ford LGT-12 Transmission



Ford LGT-12 lawn tractor photo
1984 - 1985
Garden tractor
Transmissions overview
4-speed gear
hydrostatic
Transmission
Typebelt-driven gear
Gears4 forward and 1 reverse
Oil capacity2 qts
1.9 L
Oil type
EP 140
Speeds

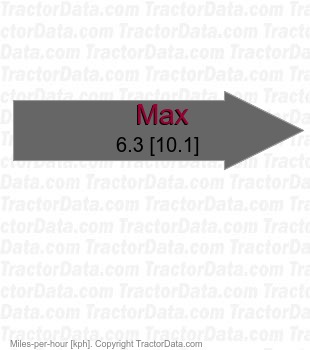

LGT-12 belt-driven gear speeds
Transmission
TransmissionEaton 11
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L
Oil type
SAE 20
Speeds

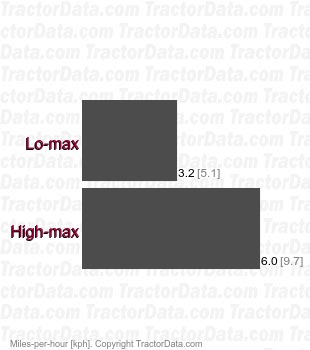

LGT-12 11 shaft-driven hydrostatic speeds
