| | 1977 - 1981 |
| Lawn tractor | | Jacobsen built |
|
Series map:
LT-80
LT-100
8.0hp
10.0hp
| Engine Detail |
| Briggs & Stratton 191707 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 318 cc
19.44 ci
|
| Bore/Stroke | 3.00x2.75 inches
76 x 70 mm
|
| Power (gross) | 8 hp
6.0 kW
|
| Rated RPM | 3600
|
| Starter volts | 12
|

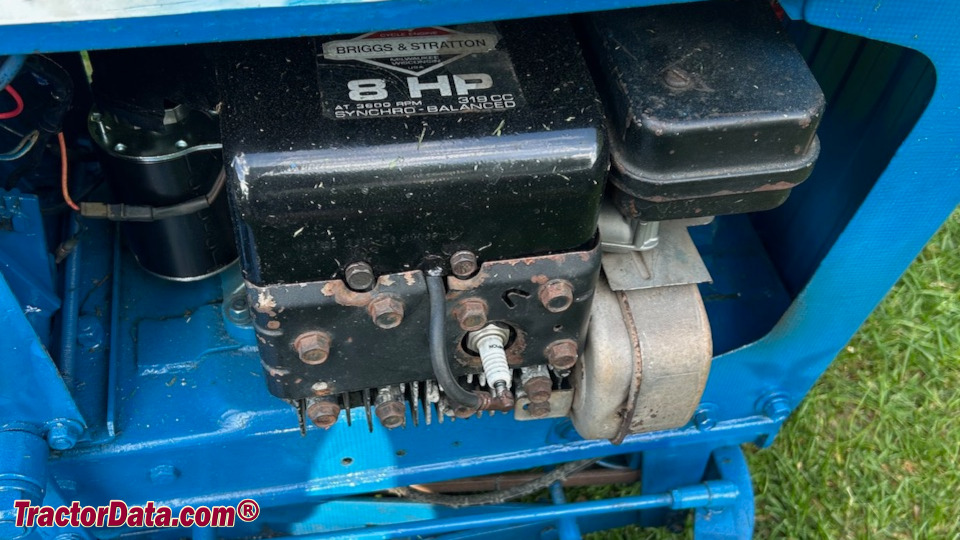

| Ford LT-80 Engine |
 |
| Image courtesy of Alex and Charles Bertrand |
