Simplicity Legacy XL 27 Engine

Simplicity Legacy XL 27 lawn tractor photo
2004 - 2015
Legacy Series
Garden tractor
Series map:
Legacy XL 27
Legacy XL 27LC
Engine Detail
Kohler CH740
air-cooled horizontal-shaft V-Twin
Displacement725 cc
44.24 ci
Bore/Stroke3.27x2.64 inches
83 x 67 mm
Power (gross)27 hp
20.1 kW
Torque40 lb-ft
54.2 Nm
Torque RPM2400
Starter volts12
Oil capacity2.1 qts
2.0 L
Simplicity Legacy XL 27 Engine

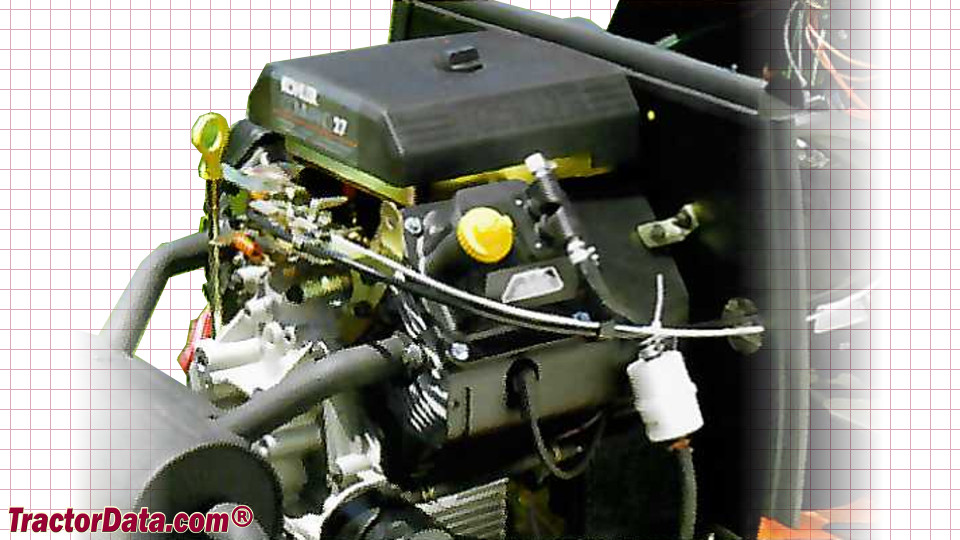

Simplicity Legacy XL 27 engine image
