| | 2010 - 2012 |
| LT125 Series | | Lawn tractor |
|
Series map:
LT2342
LT2446
23.0hp
24.0hp
| Engine Detail |
| Briggs & Stratton 44L777 |
| gasoline |
| 2-cylinder |
| air-cooled vertical-shaft V-Twin |
| Displacement | 724 cc
44.18 ci
|
| Bore/Stroke | 3.12x2.89 inches
79 x 73 mm
|
| Power (gross) | 23 hp
17.2 kW
|
| Starter | electric key start
|
| Starter volts | 12
|

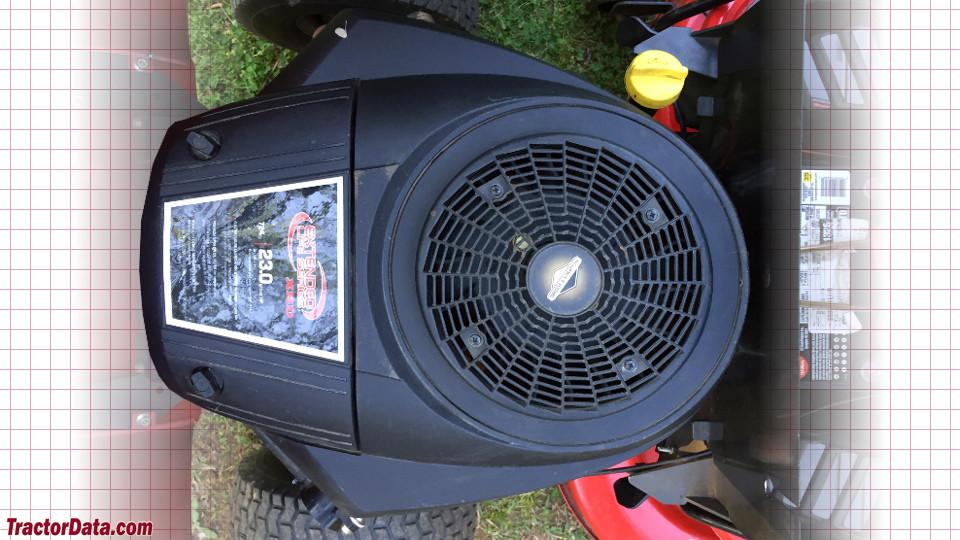

| Snapper LT2342 Engine |
 |
| Image courtesy of Lesmono |
