Toro 310 Engine


No photo available
1990 - 1993
Garden tractor

Note: the Toro model 310 is the same as the Wheel Horse 310-8. The following data is from the 310-8 listing.
Engine Detail
Kohler K241S
gasoline
1-cylinder
air-cooled
Original engine. The K241 was used on the Wheel Horse 310-8 through the 1986 model year.
Displacement390 cc
23.85 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power10 hp
7.5 kW
Rated RPM3600
Starter volts12
Engine Detail
Kohler M10S
gasoline
1-cylinder
air-cooled
The Kohler M10S replaced the K241 on the Wheel Horse 310-8 starting with the 1987 model year, tractor model code 21-10K804.
Displacement390 cc
23.85 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power10 hp
7.5 kW
Compression6.2:1
Rated RPM3600
Starter volts12
SparkplugChampion RH10
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

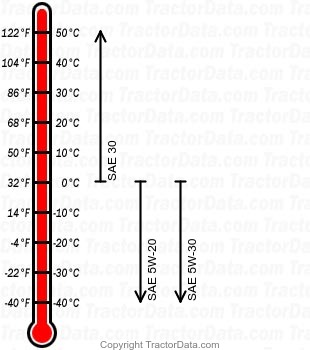

310 gasoline engine oil chart
Oil capacity2.5 qts
2.4 L
