Lawn Tractors > White > GT-1120

White GT-1120 Engine



White GT-1120 tractor photo
1978 - 1980
Garden tractor
MTD built
Series map:
GT-1120
11.0hp
Engine Detail
Briggs & Stratton 253417
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement399 cc
24.36 ci
Bore/Stroke3.44x2.625 inches
87 x 67 mm
Power (gross)11 hp
8.2 kW
Rated RPM3500
Torque16.7 lb-ft
22.6 Nm
Torque RPM2700
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Engine Oil

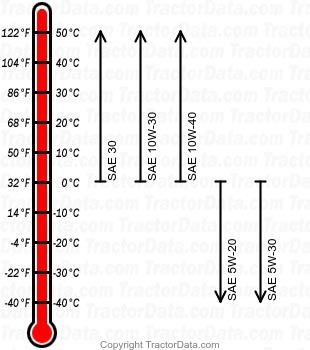

GT-1120 gasoline engine oil chart
Oil capacity1.25 qts
1.2 L
Oil change25 h
