| Engine Detail |
| Tecumseh HH100 |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 389 cc
23.75 ci
|
| Bore/Stroke | 3.3125x2.75 inches
84 x 70 mm
|
| Power | 10 hp
7.5 kW
|
| Rated RPM | 3600
|
| Starter volts | 12
|
| Oil capacity | 1.25 qts
1.2 L
|

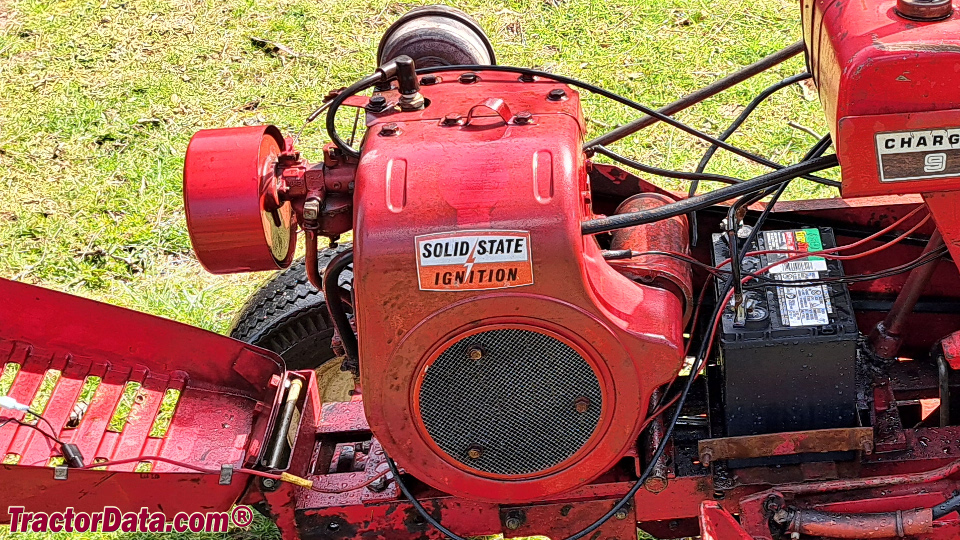

| Wheel Horse Charger 9 Engine |
 |
| Image courtesy of Tim De Baere |
