Lawn Tractors > Wheel Horse > 10HP

Wheel Horse 10HP Engine



Wheel Horse 10HP lawn tractor photo
1973
Garden tractor
Series map:
10HP
12HP
10.0hp
12.0hp
Engine Detail
Kohler K241AS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.88 inches
83 x 73 mm
Power10 hp
7.5 kW
Rated RPM3600
Starter volts12
Oil capacity1.5 qts
1.4 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm

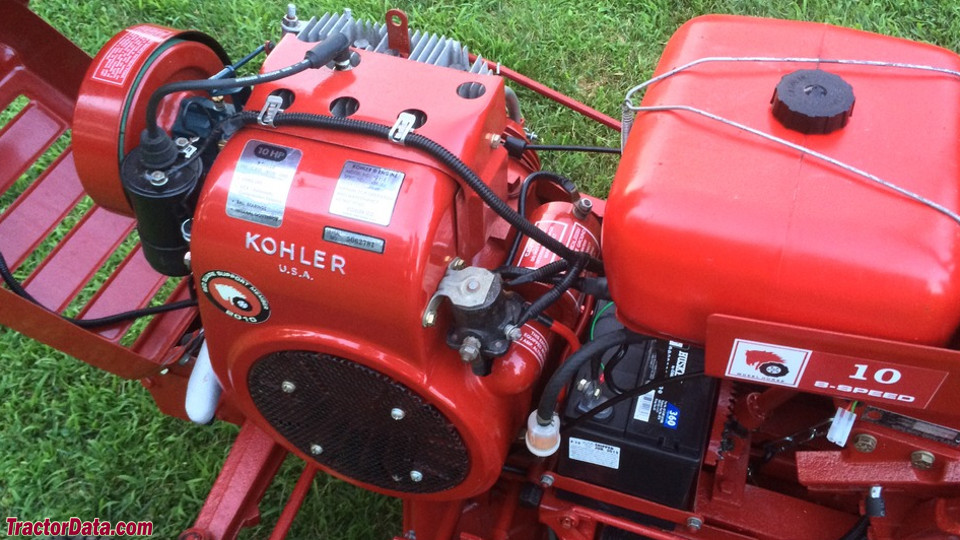

Wheel Horse 10HP Engine
Wheel Horse 10HP engine image
Image courtesy of Michael McGuire
