Lawn Tractors > Wheel Horse > C-175

Wheel Horse C-175 Engine



Wheel Horse C-175 lawn tractor photo
1980 - 1984
C Series
Garden tractor
Series map:
C-165
C-175
C-195
16.0hp
17.0hp
19.0hp
Engine Detail
Kohler KT17
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
Displacement691 cc
42.18 ci
Bore/Stroke3.125x2.75 inches
79 x 70 mm
Power (gross)17 hp
12.7 kW
Air cleanerdry element
Starterelectric
Starter volts12
SparkplugBL-15Y
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Engine Oil

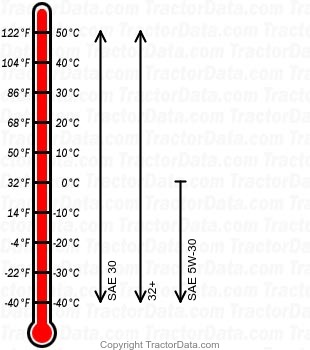

C-175 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
Oil change25 h
