Lawn Tractors > Kubota > G3200

Kubota G3200 Engine



Kubota G3200 tractor photo
1983 - 1988
G Series
Garden tractor
Series map:
G3200
G4200
10.0hp
12.0hp
Engine Detail
Kubota Z400
diesel
2-cylinder
liquid-cooled horizonal-shaft
Displacement399 cc
24.4 ci
Bore/Stroke2.52x2.45 inches
64 x 62 mm
Power (gross)10 hp
7.5 kW
Pre-heatingglow plugs
Rated RPM3200
Starterelectric
Starter volts12
Starter power0.94 hp
0.7 kW
Coolant capacity2 qts
1.9 L

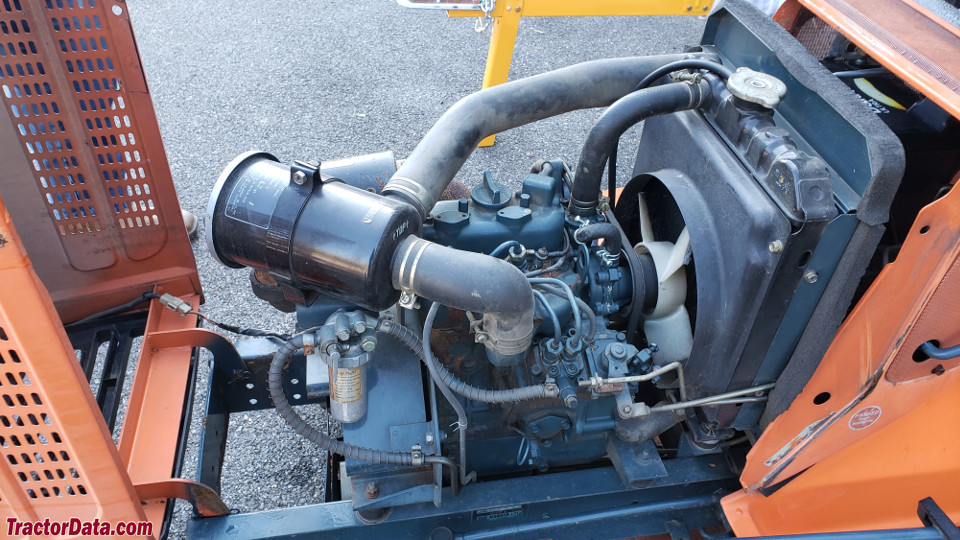

Kubota G3200 Engine
Kubota G3200 engine image
Image courtesy of J. McCracken
