Lawn Tractors > Cub Cadet > LT1050

Cub Cadet LT1050 Engine



Cub Cadet LT1050 tractor photo
2005 - 2008
LT 1000 Series
Lawn tractor
Series map:
LT1046
LT1050
23.0hp
25.0hp
Engine Detail
Kohler SV720
gasoline
2-cylinder
air-cooled vertical-shaft V-twin
Displacement724 cc
44.2 ci
Bore/Stroke3.27x2.64 inches
83 x 67 mm
Power (gross)25 hp
18.6 kW
Compression9.0:1
Rated RPM3600
Idle RPM1200-3600
Torque38 lb-ft
51.5 Nm
Torque RPM2800
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

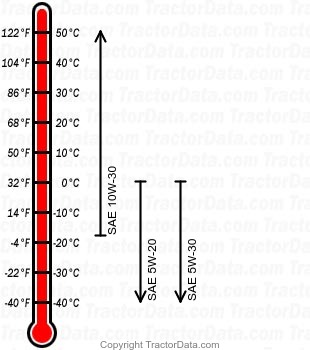

LT1050 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
Oil change100 h
