Sabre 2554HV Transmission


Sabre 2554HV lawn tractor photo
1998 - 2002
Garden Series
Garden tractor
Series:2354HV2554HV
Transmission
Transmissionuff Torq K65
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.4 qts
3.2 L
Oil changefill as needed
Tractors built prior to the 2000 model year had sealed transmissions which could not be refilled.
Speeds

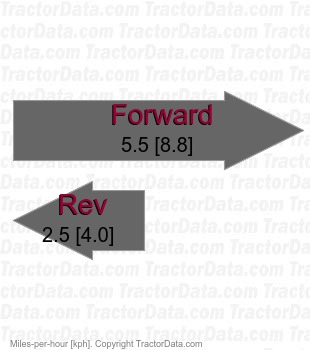

2554HV K65 belt-driven hydrostatic speeds
Transmission
TransmissionTuff Torq K66C
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.4 qts
3.2 L
Oil changefill as needed
K66 used in the 2002 model year.
Speeds
2554HV K66C belt-driven hydrostatic speeds
