| | 1979 - 1985 |
| 900 Series | | Garden tractor |
|
Series map:
910
912
914
10.0hp
12.0hp
14.0hp
| Transmissions overview |
| 6-speed gear |
| hydrostatic |
| Transmission |
| Type | belt-driven gear
|
| Gears | 6 forward and 2 reverse
|
| Oil capacity | 2.25 qts
2.1 L
|
| Speeds |
|
| Transmission |
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil capacity | 3 qts
2.8 L
|
| Oil type | | Allis-Chalmers Power Fluid 821 |
|
| Oil change | 400 h
|

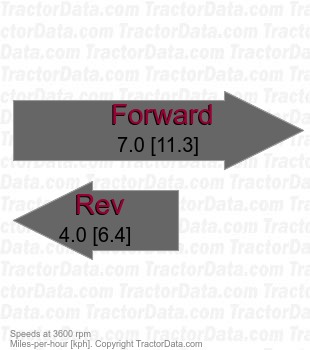

| Speeds |
|
