| | 1974 - 1979 |
| 700 Series | | Garden tractor |
|
Series map:
710
712
716
10.0hp
12.0hp
16.0hp
| Engine Detail |
| Kohler K301 |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 476 cc
29.1 ci
|
| Bore/Stroke | 3.38x3.25 inches
86 x 83 mm
|
| Power | 12 hp
8.9 kW
|
| Air cleaner | dry
|
| Rated RPM | 3600
|
| Starter | electric
|
| Starter volts | 12
|

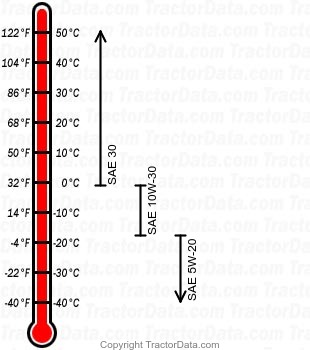

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 25 h
|
