| | 1971 - 1973 |
| 300 Series | | Garden tractor |
|
Series map:
312
314
12.0hp
14.0hp
| Engine Detail |
| Kohler |
| gasoline |
| 1-cylinder |
| air-cooled |
| Displacement | 512 cc
31.27 ci
|
| Bore/Stroke | 3.50x3.25 inches
89 x 83 mm
|
| Power | 14 hp
10.4 kW
|
| Rated RPM | 3600
|
| Starter volts | 12
|

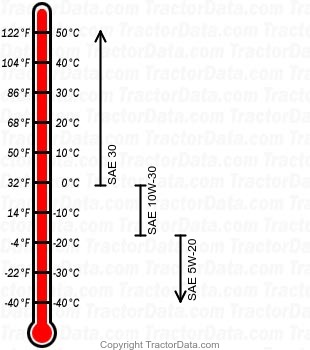

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 25 h
|
