John Deere X724 Transmission


John Deere X724 lawn tractor photo
2006 - 2012
Select X700 Series
Garden tractor
Series map:
X720
X724
X728
27.0hp
27.0hp
27.0hp
Transmission
TransmissionTuff Torq K92
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity6 qts
5.7 L
Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard.
Speeds
26-inch tires.

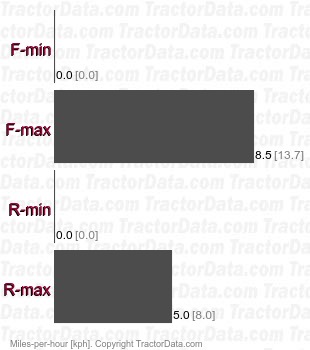

X724 K92 shaft-driven hydrostatic speeds

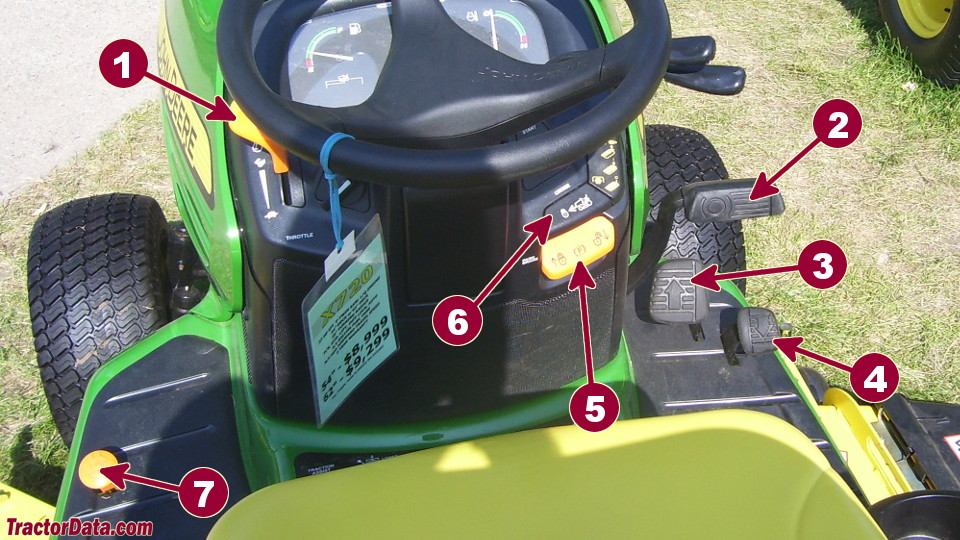

X724 Transmission Controls
John Deere X724 transmission controls
1Throttle
2Brake
3Forward
4Reverse
5Parking brake
6Cruise control
7Differential lock
