| | 2002 - 2006 |
| HDGT X Series | | Garden tractor |
|
Series map:
X575
X585
23.0hp
25.0hp
| Transmission |
| Transmission | Tuff Torq K92
|
| Type | shaft-driven hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil capacity | 7.0 qts
6.6 L
|
| Oil type | (J20D)
|
| Speeds |
| With 26x12-12 rear tires. |
|

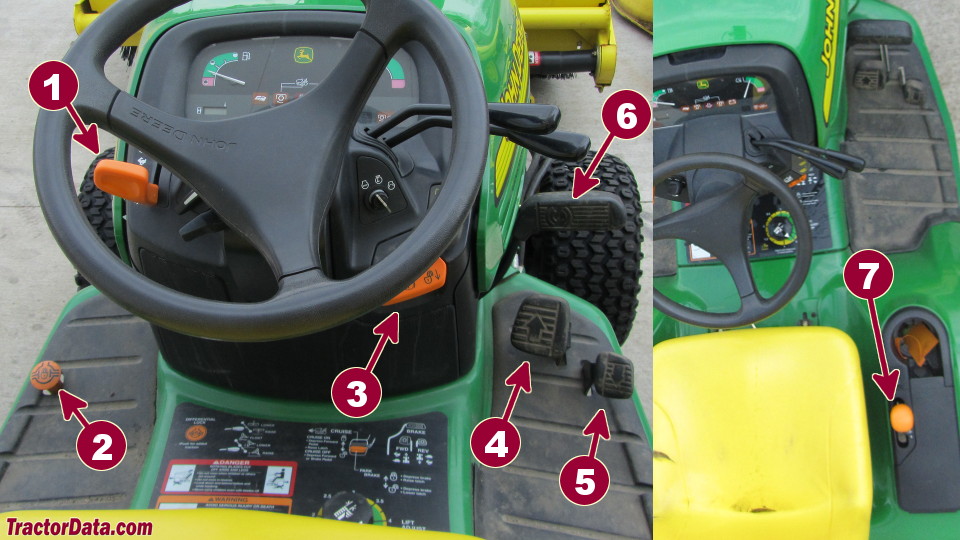

| X575 Transmission Controls |
 |
| 1 | Throttle
|
| 2 | Differential Lock
|
| 3 | Parking Brake
|
| 4 | Forward
|
| 5 | Reverse
|
| 6 | Brake
|
| 7 | Four-wheel Drive
|
