John Deere X540 Engine


John Deere X540 lawn tractor photo
2006 - 2014
Model year
Select X500 Series
Garden tractor
Series:X534X540
Engine Detail
Kawasaki FD731V
gasoline
2-cylinder
liquid-cooled
Displacement675 cc
41.2 ci
Bore/Stroke2.96x2.99 inches
75 x 76 mm
Power (gross)26 hp
19.4 kW
Fuel systemcarburetor
Starter volts12
Coolant capacity3.2 qts
3.0 L
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.006 inches (cold)
0.152 mm
Exhaust valve clearance0.006 inches (cold)
0.152 mm
Engine Oil

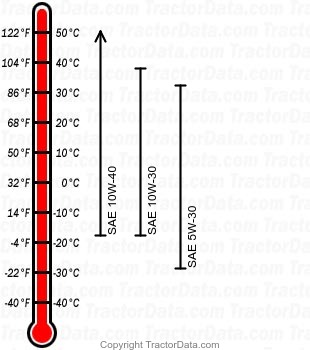

X540 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
