John Deere X475 Transmission


John Deere X475 lawn tractor photo
2002 - 2005
HDGT X Series
Garden tractor
Series map:
X465
X475
X485
21.0hp
23.0hp
25.0hp
Transmission
TransmissionTuff Torq K92
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity7 qts
6.6 L
 6 qts (X465 AWS)
5.7 L
Oil type
Low-viscosity HY-GARD
Hydrostatic transmission operator with dual foot pedals. Cruise control on dashboard.

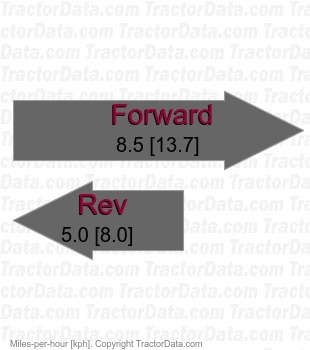

Speeds
X475 K92 shaft-driven hydrostatic speeds
X475 Transmission Controls
John Deere X475 transmission controls
1Throttle
2Brake
3Forward
4Reverse
5Parking brake
6Cruise control
7Differential lock
