John Deere X300 Engine


John Deere X300 lawn tractor photo
2006 - 2015
Model year
Select X300 Series
Lawn tractor
Series map:
X300
X320
17.0hp
22.0hp
Engine Detail
Kawasaki FH491V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement472 cc
28.8 ci
Bore/Stroke2.68x2.56 inches
68 x 65 mm
Power (gross)17 hp
12.7 kW
Fuel systemcarburetor
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.013 inches
0.330 mm
Intake valve clearance0.004 inches (Cold)
0.102 mm
Exhaust valve clearance0.004 inches (Cold)
0.102 mm
Engine Oil

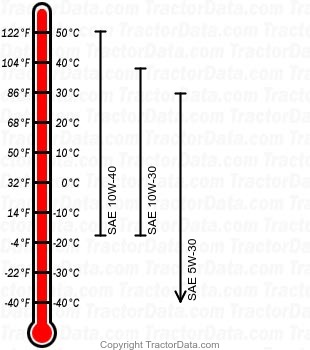

X300 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
