Series map:
STX30
STX38
9.0hp
12.5hp
| Engine Detail |
| Kohler CV12.5-1215 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 398 cc
24.3 ci
|
| Bore/Stroke | 3.425x2.638 inches
87 x 67 mm
|
| Power | 12.5 hp
9.3 kW
|
| Air cleaner | paper and foam
|
| Compression | 8.9:1
|
| Idle RPM | 1350-3350
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|
| Sparkplug gap | 0.040 inches
1.016 mm
|

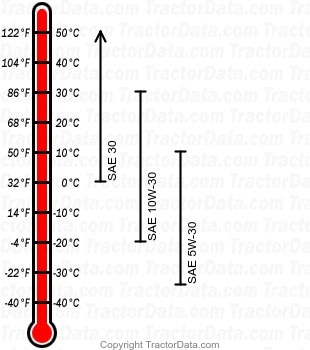

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 50 h
|

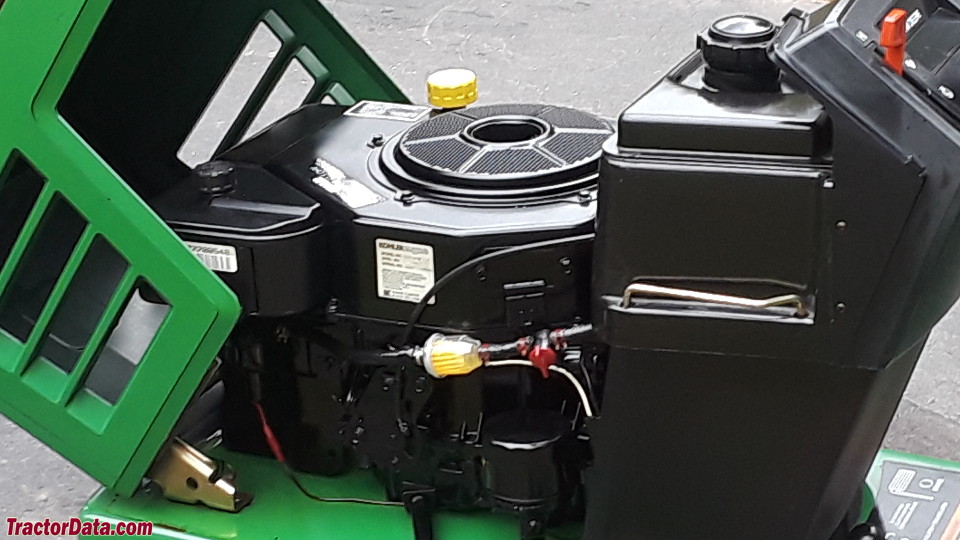

| John Deere STX38 Engine |
 |
