John Deere LTR166 Engine

John Deere LTR166 lawn tractor photo
1999 - 2001
Rear-discharge mower
Series map:
Engine Detail
Briggs & Stratton 303777
air-cooled vertical-shaft V-Twin
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power16 hp
11.9 kW
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

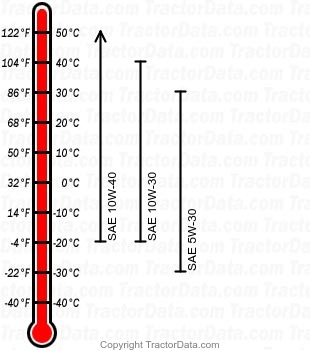

LTR166 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
Oil change50 h
