John Deere 155C Engine


John Deere 155C lawn tractor photo
2006
Lawn tractor
Series:145155C190C
Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled
Displacement:724 cc
44.2 ci
Bore/Stroke:3.15x2.64 inches
80 x 67 mm
Power:25 hp
18.6 kW
Air cleaner:paper with foam
Starter volts:12
Sparkplug gap:0.030 inches
0.762 mm
Point gap:0.225 inches
5.715 mm
Intake valve clearance:0.005 inches
0.127 mm
Exhaust valve clearance:0.005 inches
0.127 mm
Engine Oil

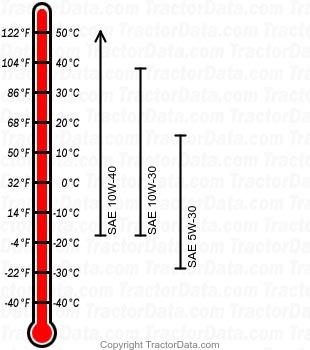

155C gasoline engine oil chart
Oil capacity:1.9 qts
1.8 L
